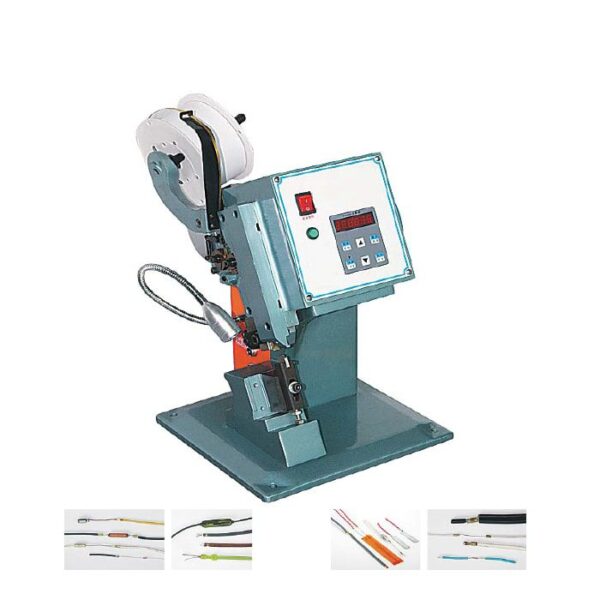

Brass Belt Crimping Machine – PRV-WP-04A Series

The Brass Belt Crimping Machine PRV-WP-04A Series is designed for coupling wires and electronic components through a controlled mechanical crimping process. It provides an alternative to conventional soldering and welding methods, eliminating the need for heat or compressed air during the crimping operation.

The machine is designed to create precise crimp connections while cutting the brass strip at the required position to minimise material wastage. Available in three pressing force configurations – 1.8T, 3.0T and 4.0T – it offers flexibility for different wire joining and electronic component assembly requirements.

Key Features

• Solderless Crimping Process: Joins wires and electronic components through mechanical crimping instead of soldering or welding.
• No Heat Required: Performs the crimping process without requiring heat.
• No Compressed Air Required: Operates without an external compressed air supply.
• Precise Brass Strip Cutting: Cuts the strip at the required crimping position to help minimise material wastage.
• Multiple Pressing Force Options: Available in 1.8T, 3.0T and 4.0T configurations.
• Compact Machine Design: Designed for convenient installation and operation.
• Flexible Applications: Suitable for headphone cables, data cables, electronic components, automobile wire harnesses and security system wires.

Applications

This Machine is suitable for:

• Headphone cable connections
• Data cable assembly
• Electronic component connections
• Automobile wire harnesses
• Security system wiring
• Electrical wire coupling
• Electronic wire assembly operations

Technical Specifications

Parameter	PRV-WP-04A-1.8T	PRV-WP-04A-3.0T	PRV-WP-04A-4.0T
Pressing Force	1,800 kg	3,000 kg	4,000 kg
Motor Power	0.55 kW	1.0 kW	1.5 kW
Feed Length	22 mm	32 mm	42 mm
Copper Strip Width	2 / 4 / 6 mm	6 / 8 / 10 mm	6 / 8 / 10 mm
Machine Dimensions	310 × 450 × 480 mm	330 × 600 × 630 mm	430 × 700 × 730 mm
Machine Weight	45 kg	110 kg	130 kg

Common Power Supply: AC 220 V, 50/60 Hz (subject to confirmation of the original specification).

Available Models

PRV-WP-04A-1.8T: Compact configuration with 1,800 kg pressing force.

PRV-WP-04A-3.0T: Medium configuration with 3,000 kg pressing force.

PRV-WP-04A-4.0T: Higher pressing force configuration with 4,000 kg pressing force.

Why Choose the PRV-WP-04A Series?

The PRV-WP-04A Series offers a mechanical crimping alternative to conventional soldering and welding for wire and electronic component connections. Its no-heat process, absence of compressed air requirements and precise brass strip cutting help simplify the joining operation and reduce unnecessary material wastage.

With three pressing force options, the series provides flexibility for different production and assembly requirements.
