Automatic Folding and Binding Machine (8-Type Binding) – PRV-WP-81 / PRV-WP-82
The **Automatic Folding and Binding Machine (8-Type Binding)** is designed for automatic folding and binding of AC cords, DC cords, audio/video cords and HDMI cables. Available in PRV-WP-81 and PRV-WP-82 models, it uses iron-core tie wires or rubber bands to produce neatly folded and securely bound cable bundles.
- Description
Description

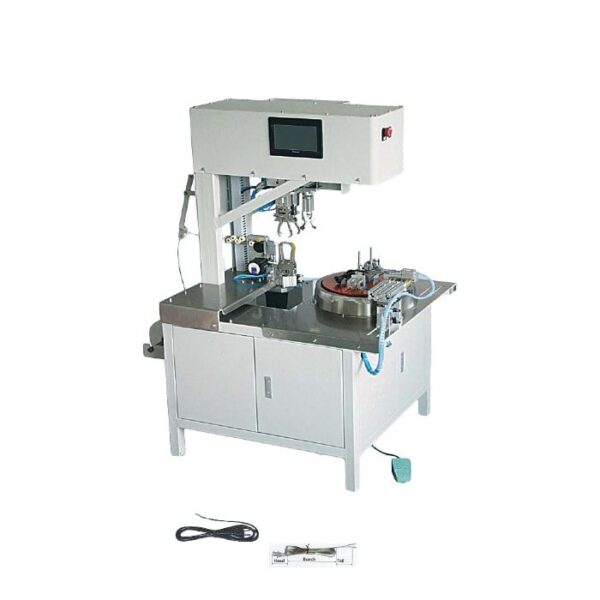

Automatic Folding and Binding Machine (8-Type Binding) – PRV-WP-81 / PRV-WP-82
The Automatic Folding and Binding Machine (8-Type Binding) is designed for automatic folding and binding of AC cords, DC cords, audio/video cords and HDMI cables. It uses iron-core tie wires or rubber bands to create neatly folded and securely bound cable bundles.
Featuring an 8-type winding mechanism, the machine helps achieve uniform cable folding and consistent binding for electrical and electronic cable packaging applications. Available in two models, PRV-WP-81 and PRV-WP-82, it accommodates different wire diameters, cord lengths and bundle dimensions.
Key Features
- Automatic Folding and Binding: Integrates cable folding and binding operations into one machine.
- 8-Type Binding Mechanism: Produces neatly arranged 8-shaped cable bundles.
- Multiple Binding Materials: Supports iron-core tie wires or rubber bands.
- Wide Cable Compatibility: Suitable for AC cords, DC cords, audio/video cords and HDMI cables.
- Two Model Configurations: Available in PRV-WP-81 and PRV-WP-82.
- Adjustable Bundle Dimensions: Accommodates different bunch lengths and diameters according to the selected model.
- Consistent Cable Bundling: Helps maintain uniform folding and binding across production batches.
- Production Efficiency: Designed for repetitive automatic cable folding and binding operations.
Applications
The Automatic Folding and Binding Machine is suitable for:
- AC power cord folding and binding
- DC cable folding and bundling
- Audio and video cable bundling
- HDMI cable folding and binding
- Electrical cord packaging
- Electronic cable assembly
- Cable organisation and packaging preparation
Technical Specifications
The PRV-WP-81 and PRV-WP-82 models offer different processing capacities to accommodate varying cable dimensions and bundle requirements.
| Technical Parameters | PRV-WP-81 | PRV-WP-82 |
|---|---|---|
| Winding Appearance | 8 Type | 8 Type |
| Applicable Wire Diameter | Less than 4 mm | Less than 10 mm |
| Applicable Cord Length | Less than 3 metres | Less than 8 metres |
| Bunch Length | 45–70 mm | 70–200 mm |
| Diameter of Bunch | Less than 18 mm | Less than 40 mm |
| Head-End Length | 0–130 mm | 0–150 mm |
| Tail-End Length | 0–130 mm | 0–150 mm |
| Production Capacity | 1,600 | 1,600 |
| Tie Band Width | 2 mm | 2 mm |
| Air Pressure | 5–7 kg | 5–7 kg |
| Machine Dimensions (L × W × H) | 650 × 850 × 1400 mm | 700 × 850 × 1500 mm |
| Machine Weight | 110 kg | 120 kg |
Available Models
PRV-WP-81 – 8-Type Binding Machine
The PRV-WP-81 is designed for smaller cable diameters and shorter cord lengths. It is suitable for compact cable bundles and electrical cord packaging applications.
- Applicable wire diameter: Less than 4 mm
- Applicable cord length: Less than 3 metres
- Bunch length: 45–70 mm
- Bunch diameter: Less than 18 mm
- Machine dimensions: 650 × 850 × 1400 mm
- Machine weight: 110 kg
PRV-WP-82 – 8-Type Binding Machine
The PRV-WP-82 is designed for larger wire diameters and longer cord lengths. It offers greater flexibility for applications requiring larger cable bundles.
- Applicable wire diameter: Less than 10 mm
- Applicable cord length: Less than 8 metres
- Bunch length: 70–200 mm
- Bunch diameter: Less than 40 mm
- Machine dimensions: 700 × 850 × 1500 mm
- Machine weight: 120 kg
Why Choose the PRV-WP-81 / PRV-WP-82?
The PRV-WP-81 and PRV-WP-82 provide an automated solution for 8-type cable folding and binding. Their compatibility with iron-core tie wires and rubber bands makes them suitable for different electrical and electronic cable packaging requirements.
With two model configurations, customers can select the appropriate machine according to wire diameter, cord length and required bundle dimensions.
Request a Quote
Looking for an automatic solution for folding and binding AC cords, DC cords or HDMI cables?
Contact Parovi Machines to discuss your cable specifications, required bundle dimensions and suitable machine configuration.
Send Enquiry
