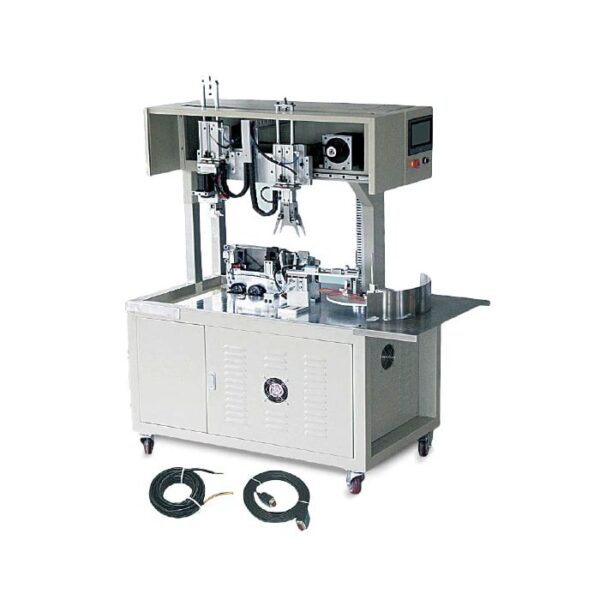

Automatic Folding and Round Type Binding Machine

The Automatic Folding and Round Type Binding Machine is designed for automatic folding and binding of AC cords, DC cords, audio/video cords and HDMI cables. Available in PRV-WP-85 and PRV-WP-86 models, it creates neatly arranged round cable bundles using iron-core tie wires or rubber bands, ensuring consistent cable presentation and efficient packaging operations.

Description

Automatic Folding and Round Type Binding Machine – PRV-WP-85 / PRV-WP-86

The Automatic Folding and Round Type Binding Machine is designed for automatic folding and binding of electrical cords and electronic cables into uniform round-shaped bundles. It provides an efficient solution for cable organisation and packaging using iron-core tie wires or rubber bands.

The machine is suitable for AC cords, DC cords, audio/video cords and HDMI cables. Its round-type winding mechanism creates neatly arranged cable bundles, helping improve product presentation, consistency and packaging efficiency.

The series is available in two configurations, PRV-WP-85 and PRV-WP-86, to accommodate different wire diameters, cord lengths and bundle dimensions. Both models are designed for repetitive cable folding and binding operations in electrical and electronic cable production environments.

Key Features

  • Automatic Folding and Binding: Integrates cable folding and binding operations into one machine.
  • Round-Type Binding Mechanism: Creates uniformly arranged round-shaped cable bundles.
  • Multiple Binding Materials: Supports iron-core tie wires and rubber bands.
  • Wide Cable Compatibility: Suitable for AC cords, DC cords, audio/video cords and HDMI cables.
  • Two Model Configurations: Available in PRV-WP-85 and PRV-WP-86.
  • Adjustable Bundle Dimensions: Accommodates different bunch lengths and diameters according to the selected model.
  • Consistent Cable Bundling: Helps maintain uniform folding and binding across production batches.
  • Automatic Production: Designed for repetitive cable folding and binding operations.

Applications

The Automatic Folding and Round Type Binding Machine is suitable for:

  • AC power cord folding and binding
  • DC cable folding and bundling
  • Audio and video cable bundling
  • HDMI cable folding and binding
  • Electrical cord packaging
  • Electronic cable assembly
  • Cable organisation and packaging preparation

Technical Specifications

The PRV-WP-85 and PRV-WP-86 models offer different processing capacities to accommodate varying cable dimensions and bundle requirements.

Technical Parameters PRV-WP-85 PRV-WP-86
Winding Appearance Round Type Round Type
Applicable Wire Diameter Less than 4 mm Less than 10 mm
Applicable Cord Length Less than 3 metres Less than 8 metres
Bunch Length 50–120 mm 80–180 mm
Diameter of Bunch Less than 25 mm Less than 40 mm
Head-End Length 0–120 mm 40–130 mm
Tail-End Length 0–120 mm 40–130 mm
Production Capacity 1,200 1,200
Tie Band Width 2 mm 2 mm
Air Pressure 5–7 kg 5–7 kg
Machine Dimensions (L × W × H) 880 × 530 × 1400 mm 790 × 630 × 1430 mm
Machine Weight 130 kg 140 kg

Available Models

PRV-WP-85 – Round Type Binding Machine

The PRV-WP-85 is designed for smaller cable diameters and shorter cord lengths. It supports wire diameters below 4 mm and cord lengths below 3 metres, making it suitable for compact round cable bundles.

  • Applicable wire diameter: Less than 4 mm
  • Applicable cord length: Less than 3 metres
  • Bunch length: 50–120 mm
  • Bunch diameter: Less than 25 mm
  • Machine dimensions: 880 × 530 × 1400 mm
  • Machine weight: 130 kg

PRV-WP-86 – Round Type Binding Machine

The PRV-WP-86 is designed for larger wire diameters and longer cord lengths. It supports wire diameters below 10 mm and cord lengths below 8 metres, providing greater flexibility for larger round cable bundles.

  • Applicable wire diameter: Less than 10 mm
  • Applicable cord length: Less than 8 metres
  • Bunch length: 80–180 mm
  • Bunch diameter: Less than 40 mm
  • Machine dimensions: 790 × 630 × 1430 mm
  • Machine weight: 140 kg

Why Choose the PRV-WP-85 / PRV-WP-86?

The PRV-WP-85 and PRV-WP-86 provide an automated solution for round-type cable folding and binding. Their compatibility with iron-core tie wires and rubber bands makes them suitable for different electrical and electronic cable packaging requirements.

With two model configurations, customers can select the appropriate machine according to wire diameter, cord length and required bundle dimensions.
