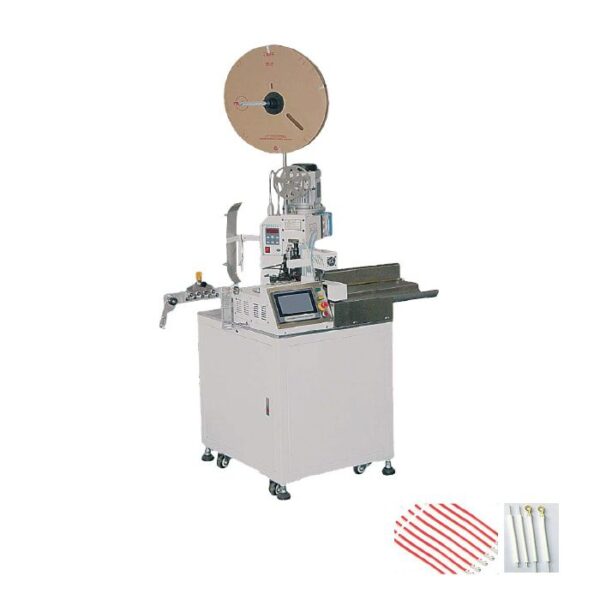

Single End Crimping and Back End Twisting Machine
The PRV-WP-02b Single End Crimping and Back End Twisting Machine is designed for automatic wire cutting, stripping and single-end terminal crimping, with a specialised back-end wire twisting function. It offers an integrated solution for efficient electronic wire processing, with adjustable mechanisms and flexible applicator compatibility.
- Description
Description
Single End Crimping and Back End Twisting Machine – PRV-WP-02b
The Single End Crimping and Back End Twisting Machine PRV-WP-02b is designed for automatic wire cutting, stripping, single-end terminal crimping and back-end wire twisting. Its specialised back-end twisting function is a key feature, making it suitable for wire processing applications that require precise terminal crimping and consistent twisting of the opposite wire end.
With adjustable processing mechanisms, a user-friendly control interface and flexible applicator compatibility, this machine provides an integrated solution for efficient electronic wire processing.
Key Features
- Back-End Wire Twisting: Specialised twisting operation for the back end of the wire.
- Automatic Wire Processing: Combines wire cutting, stripping and single-end terminal crimping.
- Single-End Crimping: Designed for accurate terminal crimping operations.
- Adjustable Mechanisms: Easy adjustment of roller gaps, cutters and other processing components.
- User-Friendly Operation: Touchscreen-based control interface for convenient machine operation.
- Flexible Applicator Compatibility: Crimping applicator suitable for OTP side-feeding or back-feeding configurations.
- Consistent Processing: Designed to support repeatable wire preparation and terminal processing.
Applications
The Single End Crimping and Back End Twisting Machine is suitable for electronic wire processing applications requiring automatic cutting, stripping, single-end terminal crimping and back-end twisting.
It is particularly useful for production processes where wire-end preparation and twisting operations need to be integrated into one machine.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PRV-WP-02b |
| Power Supply | Single Phase AC 220 V, 50/60 Hz |
| Production Speed | 6,400–10,000 pcs/hour (AWG 20–32) |
| Production Speed | 2,700–4,000 pcs/hour (AWG 16–20) |
| Wire Range | AWG 20–32 and AWG 16–20 |
| Cutting Length | 30–55 mm (can be modified to 8 mm) |
| Cutting Tolerance | ±0.2 mm |
| Tinning Length | 0.5–9 mm |
| Air Supply Required | 0.5–0.7 MPa |
| Machine Dimensions | 1210 × 770 × 1370 |
| Machine Weight | Approx. 400 kg |
Production speed may vary depending on wire size and operating conditions.
Why Choose the PRV-WP-02b?
The PRV-WP-02b combines single-end terminal crimping with a specialised back-end twisting operation. This integrated functionality makes it a practical solution for wire processing requirements where both terminal preparation and back-end twisting are important.
Its adjustable processing mechanisms and applicator compatibility provide flexibility for different electronic wire production applications.
