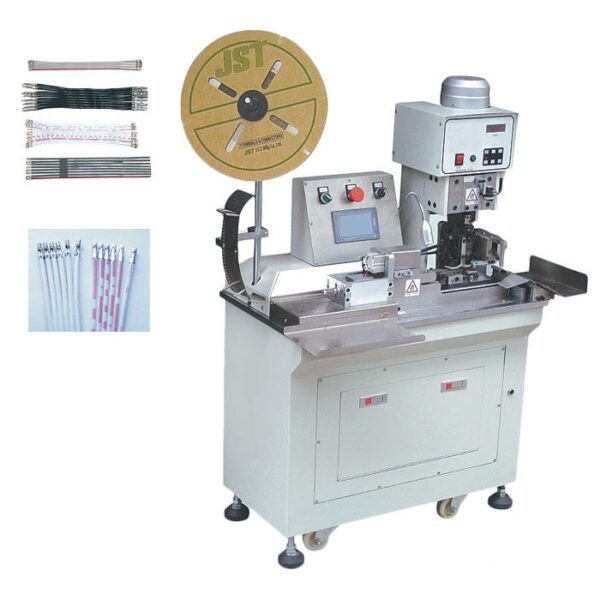

Semi Automatic Ribbon Wire Crimping Machine – PRV-WP-650
The PRV-WP-650 Semi Automatic Ribbon Wire Crimping Machine is designed for efficient terminal crimping of multi-core ribbon wires. The operator positions the stripped and separated ribbon wire on the machine’s fixture, while the crimping system applies terminals across the cores. Featuring touchscreen and PLC control, a 1.5-ton terminal crimping force, and support for 2 to 25 cores, the PRV-WP-650 is suitable for ribbon cable assembly, electronic wiring, and industrial wire harness processing.
- Description
Description
Semi Automatic Ribbon Wire Crimping Machine – PRV-WP-650
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Model | — | PRV-WP-650 |
| Machine Type | — | Semi Automatic Ribbon Wire Crimping Machine |
| Power Supply | — | Single Phase AC 220 V, 50 Hz |
| Ribbon Wire Cores | — | 2–25 |
| Driving System | — | Taiwan Delta Servo Motor |
| Minimum Required Wire Length | mm | 60 |
| Terminal Crimping Force | Ton | 1.5 |
| Control System | — | Touchscreen and PLC Control |
| Production Capacity | Terminals/hour | 12,000 |
| Peeling / Stripping Length | mm | 0–5 |
| Required Air Pressure | MPa | 0.3–0.5 |
| Machine Dimensions (L × W × H) | mm | 780 × 440 × 1300 |
| Machine Weight | kg | Approx. 200 |
Product Overview
The PRV-WP-650 Semi Automatic Ribbon Wire Crimping Machine from Parovi Machines is engineered for terminal crimping operations involving multi-core ribbon wire.
The machine is designed to crimp terminals onto the individual cores of prepared ribbon wire. The operator places the stripped and separated wire onto the positioning fixture, and the machine performs the crimping operation through its controlled mechanism.
Equipped with touchscreen and PLC control and a servo-driven system, the PRV-WP-650 supports consistent crimping performance for ribbon wire assembly applications.
Key Features
- Semi-automatic ribbon wire terminal crimping
- Supports 2 to 25 ribbon wire cores
- 1.5-ton terminal crimping force
- Servo motor-driven system
- Touchscreen and PLC control
- Production capacity of up to 12,000 terminals per hour
- Stripping length range of 0–5 mm
- Pneumatic operation
- Compact industrial design
- Suitable for prepared and separated ribbon wire
Working Principle
- Wire Preparation: Ribbon wire is stripped and separated before crimping.
- Wire Positioning: The operator places the prepared wire onto the fixture.
- Terminal Placement: Terminals are positioned for the crimping cycle.
- Crimping Operation: The machine applies controlled force to crimp terminals onto the ribbon wire cores.
- Inspection: The finished ribbon wire assembly is checked for crimp quality and consistency.
Applications
The PRV-WP-650 Semi Automatic Ribbon Wire Crimping Machine is suitable for:
- Ribbon wire terminal crimping
- Multi-core ribbon cable assembly
- Electronic wire processing
- Electrical connector assembly
- Wire harness manufacturing
- Industrial cable assembly
- Electronic equipment wiring
Benefits of Semi Automatic Ribbon Wire Crimping
- Efficient terminal crimping across multiple cores
- Reduced repetitive manual crimping
- Consistent crimping operation
- PLC-based operating control
- Servo-driven precision
- Suitable for ribbon wire production workflows
Request a Quote
Contact Parovi Machines for pricing, terminal tooling details, ribbon wire compatibility, and application-specific requirements for the PRV-WP-650 Semi Automatic Ribbon Wire Crimping Machine.
