Half Stripped Wire Twisting Machine – PRV-WP-100

Vertical Core Wire Stripping Machine with Conductor Twisting Vertical Core Wire Stripping Machine with Conductor Twisting
Single Wire Stripping and Twisting Machine Single Wire Stripping and Twisting Machine – PRV-WP-200

Efficiently twist 2 to 5 half-stripped wires at once with the Half Stripped Wire Twisting Machine PRV-WP-100 from Parovi Machines . Designed for high-speed, uniform twisting of single-core wires from AWG#14 to #22.

Application

Twisting Machine for Half Stripped Wire. Can do 2 to 5 Wires Simultaneously

Category:

Description

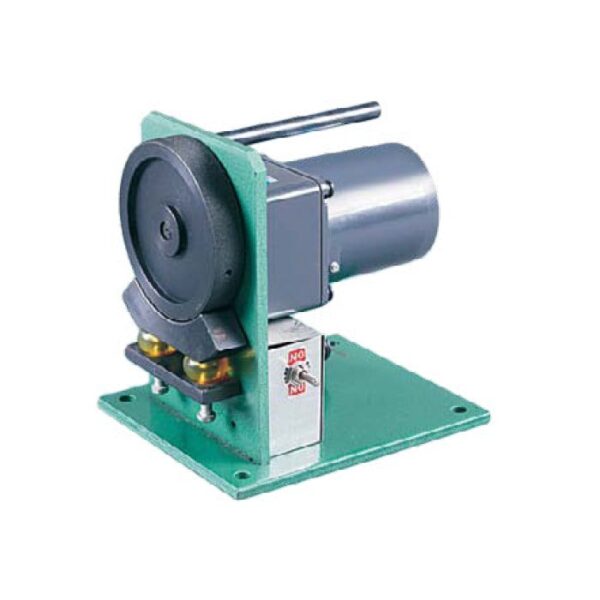

The PRV-WP-100 Half Stripped Wire Twisting Machine is engineered for fast and accurate wire end processing in multi-core wire harness production. Designed to twist 2 to 5 half-stripped wires simultaneously, it significantly enhances productivity and uniformity, especially in applications requiring clean and precise twisted ends before crimping or soldering.

The Half Stripped Wire Twisting Machine from Parovi Machines supports wire diameters from Ø1 to 4 mm (AWG#14 to AWG#22), and offers a twist length range of 4 to 20 mm, with an impressive processing speed of up to 3000 pieces per hour. This Half Stripped Wire Twisting Machine Powered by AC 220V 50 Hz and consuming just 120W, it is lightweight (10 Kg) and compact (300 x 250 x 220 mm), making it an ideal fit for modern production lines with limited space.

Perfect for industries involved in electronic assemblies, control panels, and automotive wiring systems, the PRV-WP-100 ensures consistent and high-quality results with minimal manual intervention.

Technical Parameters
MODEL PRV-WP-100
Power Supply AC 220V 50 Hz.
Weight 10 Kg.
Size 300 x 250 x 220mm
Rate 3000 Pcs. /Hr.
Twist Length 4 ~ 20 mm
Power Consumption 120 W
Applicable Line Ø1 ~ 4 mm AWG #14 ~ AWG #22
Key Features:

  • Simultaneously twists 2 to 5 wires

  • Supports half-stripped wires from AWG#14 to #22

  • High-speed operation: up to 3000 pcs/hr

  • Adjustable twist length (4–20 mm)

  • Lightweight and compact build

  • Low power consumption (120W)
