₹599.00

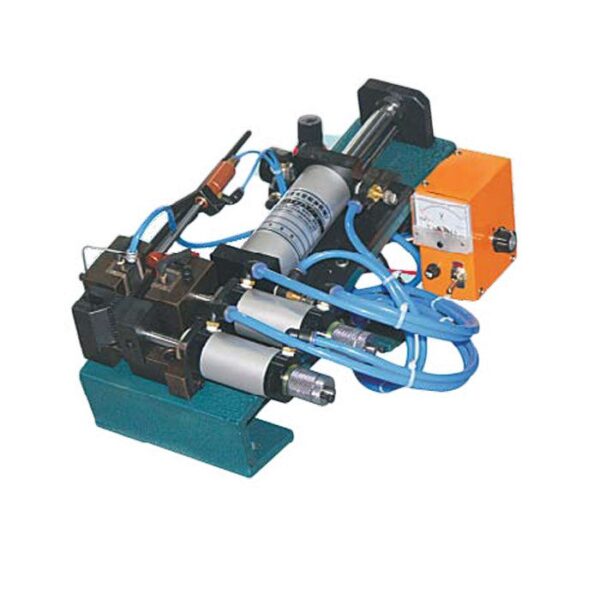

The PRV-WP-3FA is a precision-engineered Horizontal Heated Cutting and Stripping Machine that delivers clean, consistent stripping for wire insulation up to 10 mm with controlled heat and air pressure.

Applications:

  • Electronic cable assembly

  • Automotive wire harnesses

  • Heat-shrink and PTFE cable stripping

  • Custom cable processing

  • Wire end preparation for soldering/crimping



Category:

Description

The Horizontal Heated Cutting and Stripping Machine – PRV-WP-3FA is a high-performance solution designed for processing wires and cables with delicate or high-temperature insulation. With a maximum stripping length of 100 mm and precision temperature control up to 450°C, this machine ensures smooth, damage-free results even on sensitive materials.

Equipped with pneumatic pressure ranging from 3 to 7 Kg and built to handle wires up to 10 mm, the PRV-WP-3FA offers consistent quality across production runs. Its robust 25 Kg build and compact footprint make it ideal for integration in electronics, automotive, and custom harness production environments.

If you’re looking for an advanced horizontal heated cutting and stripping machine for safe and efficient insulation removal, this model offers unbeatable performance and value.

MODEL PRV-WP-3FA
Power Supply AC 220V 50 Hz
Strip Length 100 mm
Temperature Control 450°C
Size (mm) 470 x 420 x 270 mm
Wire Range ~ 10 mm
Speed 15 Kg
Air Pressure 3 ~ 7 Kg
Weight 25 Kg
Key Features:

  • High-temperature stripping up to 450°C

  • Supports wire diameters up to 10 mm

  • Precise strip length up to 100 mm

  • Pneumatic operation for stable results (3–7 Kg air pressure)

  • Compact size with rugged steel construction

  • Ideal for heat-sensitive cable insulation
