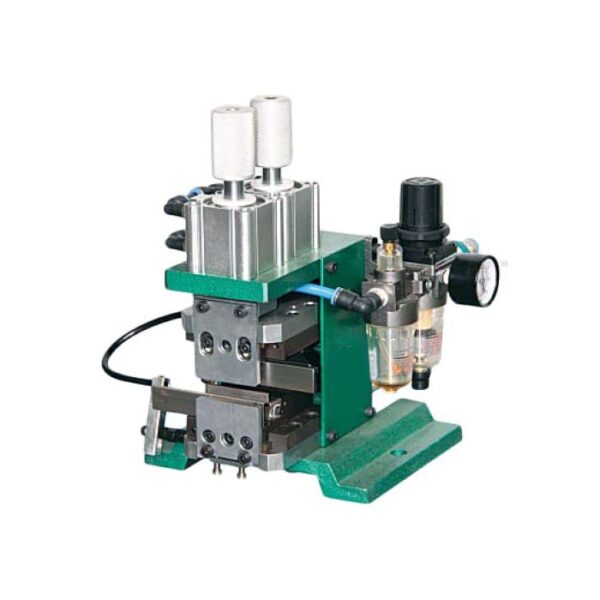

Vertical Core Wire Stripping Machine with Conductor Twisting
Vertical Core Wire Stripping Machine with Conductor Twisting

Vertical Core Wire Stripping Machine with Conductor Twisting

Vertical Core Wire Stripping Machine Vertical Core Wire Stripping Machine – PRV-WP-3F / PRV-WP-4F
Half Stripped Wire Twisting Machine Half Stripped Wire Twisting Machine – PRV-WP-100

High-precision vertical core wire stripping machines with built-in conductor twisting. Ideal for core wire processing in electronics and harness manufacturing.

Application

Vertical Wire Stripping with Conductor Twisting

Category:

Description

Long Description (SEO-Optimized):

The Vertical Core Wire Stripping Machine with Conductor Twisting series—PRV-WP-3FN and PRV-WP-4FN—are advanced wire processing solutions designed for precise vertical insulation removal and conductor twisting in a single cycle.

Whether handling finer wires like AWG #32 or larger gauges up to AWG #16, Vertical Core Wire Stripping Machine with Conductor Twisting Machines offer adjustable stripping lengths of 3–25 mm, and operate efficiently with 3–7 Kg air pressure. With compact sizes and weights of 13 Kg (3FN) and 14 Kg (4FN), these models are ideal for use in electronics, automotive harness assembly, and cable manufacturing.

The Vertical Core Wire Stripping Machine with Conductor Twisting PRV-WP-3FN is suitable for wires up to AWG #18, while the Vertical Core Wire Stripping Machine with Conductor Twisting PRV-WP-4FN accommodates thicker wires up to AWG #16. Both machines are powered by standard AC 220V 50 Hz input.

Technical Parameters
MODEL PRV-WP-3FN PRV-WP-4FN
Stripping Length 3 ~ 25 mm 3 ~ 25 mm
Wire Diamenter AWG #32 ~ #18 AWG #32 ~ #16
Air Pressure Required 3 ~ 7 Kg. 3 ~ 7 Kg.
Power AC 220V 50 Hz. AC 220V 50 Hz.
Weight 13 Kg. 14 Kg.
L+W+H (mm) 330 x 240 x 290 mm 330 x 400 x 345 mm
Key Features:

  • Vertical stripping and twisting in one operation

  • Suitable for AWG #32 to #18/#16 wire ranges

  • Adjustable stripping length (3–25 mm)

  • Clean and consistent core wire finish

  • Pneumatic operation ensures speed and reliability

  • Compact design for bench-top use
