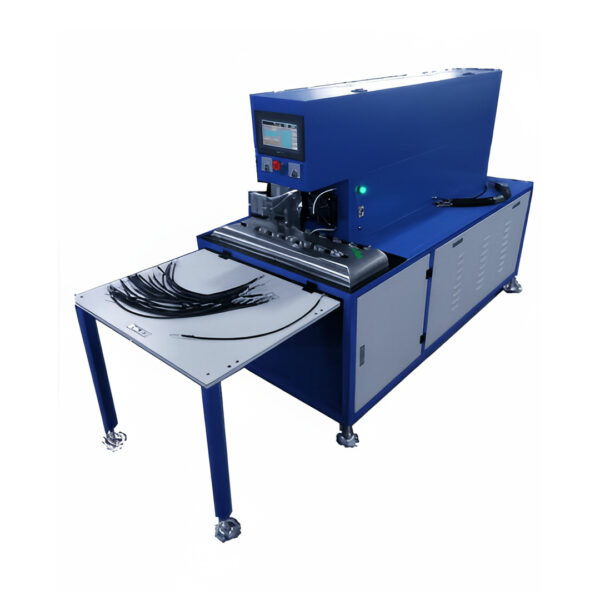

Automatic HDMI Cable Laser Foil Removing Machine

Description

The Automatic HDMI Cable Laser Foil Removing Machine is an advanced laser-based processing system engineered to remove aluminum shielding foil from HDMI cables safely and efficiently. HDMI cables contain sensitive multi-layer structures, and traditional mechanical stripping can easily damage inner wires. ThisAutomatic HDMI Cable Laser Foil Removing Machine solves that problem through precision laser cutting, ensuring clean foil removal without touching or harming the core conductors.

Equipped with a 60W high-stability laser tube, intelligent feeding system, and CCD-assisted accuracy, the machine delivers consistent, fast, and worry-free operation. With a processing capacity of up to 1300 heads per hour, it dramatically reduces manual labor, improves production efficiency, and guarantees uniform quality.

This Automatic HDMI Cable Laser Foil Removing Machine system is ideal for HDMI cable manufacturers, wire harness factories, and electronic cable processing units who require a safe and efficient way to remove aluminum foil shielding.

Key Features:

• Specialized for HDMI cable aluminum foil removal

• Zero-damage processing using precision laser cutting

• High-speed operation up to 1300 pcs/hour

• Supports HDMI cable diameters OD 3 mm – 12 mm

• Clean removal of foil layers without harming core wires

• Automated foil separation reduces operator workload

• Stable cutting performance with long laser life (10,000 hours)

• Efficient feeding system: 6000 RPM step motor

• Adjustable foil removal length: 2 mm – 12 mm

• Durable rubber strip with 200-hour working life

• Supports fixture range Line 26 to Line 34

Technical Specifications

Parameter	Specification
Machine Name	Automatic HDMI Cable Laser Foil Removing Machine
Main Function	Automatic removal of HDMI cable aluminum shielding foil
Processing Speed	Up to 1300 pcs/hour
Machine Dimensions	1500 × 700 × 1250 mm
Maximum Power Consumption	1000 W
Operating Voltage	220V
Working Air Pressure	4 PAG
Step Motor Speed	6000 RPM
Step Motor Resistance	8 N/m
Laser Tube Power	60 W
Laser Tube Life	10,000 hours
Suitable HDMI Cable Diameter	OD 3 mm – 12 mm
Foil Removal Length	2 mm – 12 mm (adjustable)
Rubber Strip Life	200 hours
Suitable Fixtures	Line 26 to Line 34
Net Weight	180 kg

Applications:

• HDMI cable production

• High-definition multimedia cable factories

• Shielded foil removal for communication cables

• Wire harness processing

• Electronics and AV cable manufacturing lines
