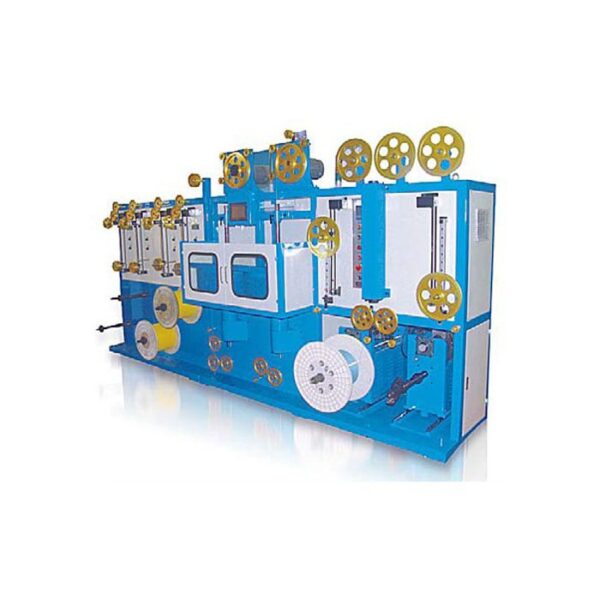

NC Single/Double Vertical Taping Machine – Φ500 Numerical Control Type

NC Single Double Horizontal Taping Machine NC Single/Double Horizontal Taping Machine – PRV-STA-800

The Vertical Taping Machine Φ500 is engineered for taping high-frequency cables like HDMI, DVI, SATA, and IEEE1394. Designed for single/double-layer taping with inline heating and advanced tension control.

Application

Suitable for taping high-frequency data cables like DVI, HDMI, ATA, SATA, and IEEE1394 with inline heating and self-adhesion process for hot shrink tape synchronously.

Category:

Description

Vertical Taping Machine Φ500 is a high-performance solution designed for precision taping of high-frequency data cables including HDMI, DVI, SATA, and IEEE1394. This NC-controlled system supports both single and double-layer vertical taping, delivering unmatched consistency and efficiency.

Built for high-speed operation (up to 2000 RPM), the Vertical Taping Machine Φ500 features a 1HP motor with adjustable speed, shaft-type active take-up, and mobile telescopic hot oven with RKC temperature control. The system uses load cells for taping tension and a dancer mechanism for take-up, ensuring seamless and accurate cable insulation.

This vertical taping machine is compatible with multiple insulation materials such as aluminium foil, cotton paper, transparent film, mica, and Teflon tape — making it ideal for advanced production lines requiring precision, speed, and durability.

Technical Parameters
Machine Model Ф500 Numerical control type double layer/Single vertical taping machine
Core Specification AWG32-AWG20
Taping Material Aluminium foil tape, Cotton Paper tape, Transparent tape, Mica tape, Teflon tape
Max. rpm MAX2000rpm/MAX28m/min
Power 1HP Motor With Adjustable Speed
Taping Tension Constant taping tension with load cells
Take-up Tension Constant take-up tension with dancer mechanism
Heat Oven Mobile telescopic hot oven, RKC temerature control, temperature tolerance : ± 1 °C
Pay-off Type Shaft type active take-up
Pay Off Size Ф300-Ф500
Take-Up size Ф400-Ф630
Machine Dimensions 4150 x 1400 x 1900
Machine Weight 2000kg
Key Features:

  • Numerical control type with double/single layer vertical taping

  • Mobile hot oven with precise RKC temperature control (±1 °C)

  • Shaft-type active take-up for smooth operation

  • Load cell-based taping tension control

  • Dancer-controlled take-up tension system

  • High-speed operation up to 2000 RPM
